6 Hi Mills

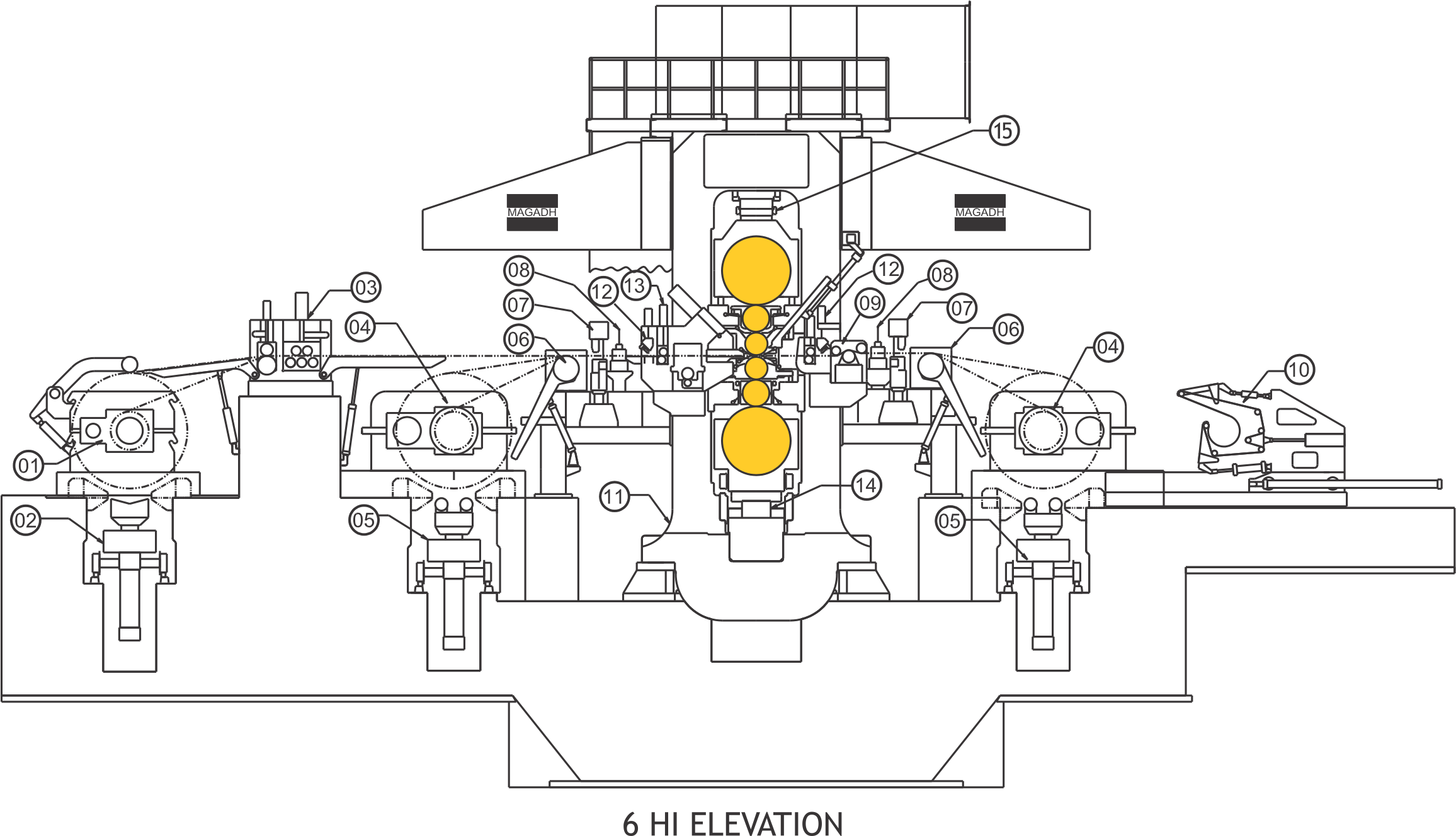

6 Reversing Cold Mills

Magadh offers 6-Hi reversing cold mills in single-stand or twin-stand configurations for strip widths up to 1650 mm, minimum finished strip thicknesses up to 0.12 mm, and mill speeds up to 1400 MPM.

Main Mill Features

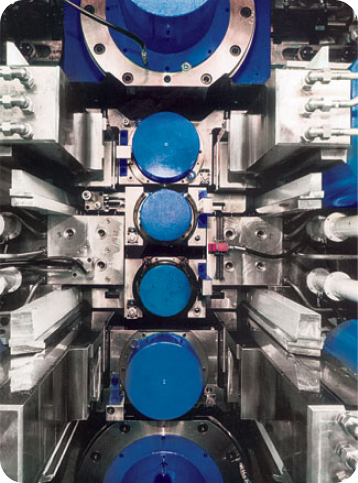

• Balanced proportional design of the mill stand ensuring a high mill modulus.
• High bending loads per neck for crown-in and crown-out of work rolls.
• Positive and negative bending of intermediate rolls.
• Quick response static/dynamic IMR shifting with position transducers.
• Bottom/top-mounted quick response roll force cylinder with internal axi-symmetric mounting of position transducer for direct roll gap measurement.
• Hydraulic wedge gear system for constant passline and roll wear compensation.
• Highly efficient strip wiping system consisting of air and roll-type wipers.
• State-of-the-art Level 2 / Level 3 automation and controls with Mill Management System.
• Shape control systems with zonal coolant control.
• Condition monitoring system for mill bearings.
